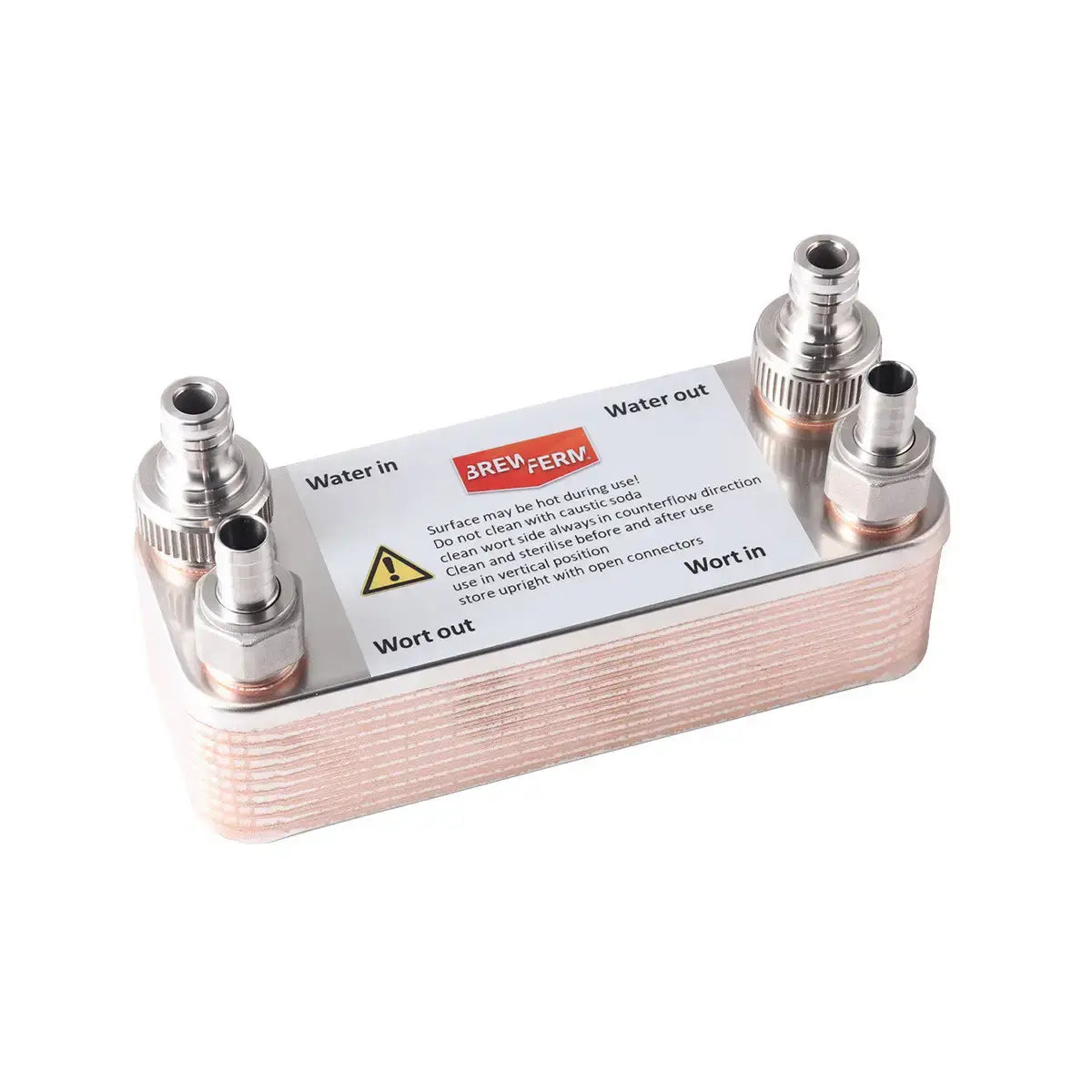

Brewferm 40 Plate Wort Chiller
Chill your wort like a professional brewer with this ultra-compact and very handy plate heat exchanger. Improved version with optimised flow speed for effective cooling through differentiated connectors.
- 40 stainless steel cooling plates
- SST quick disconnect 13 mm tube holders for wort
- SST Gardena style connectors for cooling water
- No potential leaks like with a gasketed unit
- Clearly marked connections
- Cools up to 30 litres of wort in barely 10 minutes
Hoses are not included. The hose, which is most suitable for conveying hot wort is our silicone hose. For cold water, we recommend the reinforced PVC hose
Brewferm 40 plate Wort Chiller Tips:
- Use the Brewferm 40 plate wort chiller in an upright position with the wort inlet below to prevent air locked in the heat exchanger.
- Thoroughly rinse the Brewferm plate wort chiller in counterflow direction with CHEMIPRO CIP for 10 minutes before and after use.
- Do not cover the connections when storing the plate chiller.
- When you recirculate your boiling hot wort for 10 minutes without cooling water, your plate wort cooler will also be disinfected by the hot wort, eliminating infection risk.
- The outflow temperature of the cooling water should be warm, if the outflowing water is still cold, the flow speed of the cooling water is too high.
- If the outflow temperature of the wort is too high, either reduce the flow of the wort or increase the flowrate of the cooling water.
Brewferm 40 Plate Wort Chiller Dimensions (incl. Packaging)
- Width 11.50 cm
- Height 17.50 cm
- Length 21.00 cm
- Weight 1.46 kg
