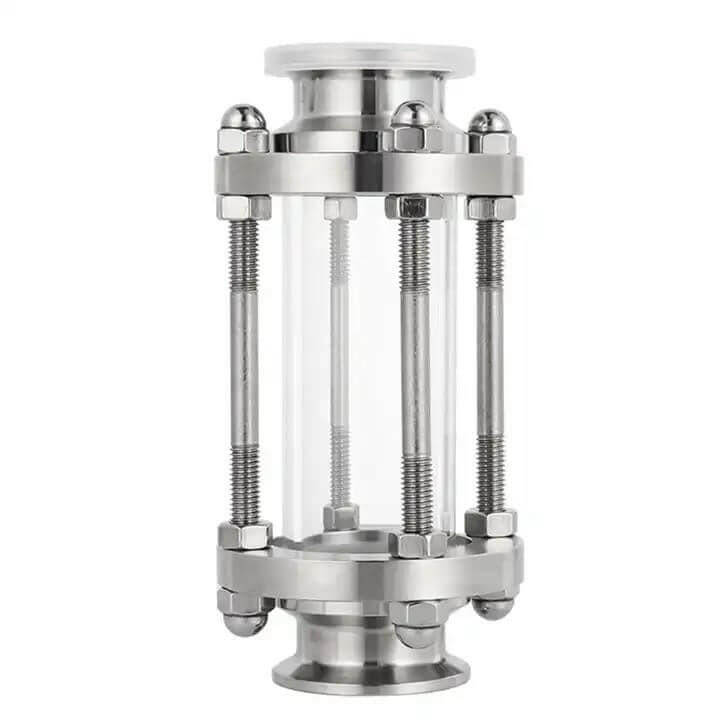

Tri Clamp Sight Glass Stainless 1.5" Fitting
Tri Clamp Sight Glass 1.5" is 16cm long and 8cm wide Approx.. it can also be striped down for cleaning
What is a Tri Clamp Sight Glass?
The Tri Clamp Sight Glass is a specialized component used in industrial processes to provide a transparent window for visual inspection of the contents within a pipeline. It consists of a stainless steel housing with a glass window, allowing operators to observe the flow, colour, and clarity of liquids. The Tri Clamp connection ensures a secure and leak-proof attachment to the pipeline, making it an essential tool in maintaining process integrity.
How a Sight Glass Works
The Tri Clamp Sight Glass works by integrating into a pipeline system, providing a window through which operators can visually monitor the flow of fluids. The stainless steel housing is designed to withstand high pressures and temperatures, ensuring the safety and durability of the sight glass. The glass window is made from a sturdy material that is resistant to cracking or breaking under normal operating conditions. By simply looking through the glass, operators can assess the quality, consistency, and any potential issues in the process.
Components and Construction
The Tri Clamp Sight Glass consists of several key components. The stainless steel housing provides strength and protection to the glass window. It is constructed using high-quality stainless steel, known for its corrosion resistance and durability. The glass window is made from a transparent material, such as glass, which is capable of withstanding the temperatures of the process. The Tri Clamp connection ensures a tight and secure seal between the sight glass and the pipeline, preventing any leaks or contamination.
Applications of Tri Clamp Sight Glass
A. Food and Beverage Industry
In the food and beverage industry, maintaining hygiene and quality is of utmost importance. Tri Clamp Sight Glass Stainless Steel is used in processes such as brewing, dairy production, and beverage manufacturing. It allows operators to visually inspect the clarity, colour, and consistency of the liquids, ensuring that they meet the required standards. It also enables easy detection of any potential contaminants, ensuring the safety and quality of the final products.
B. Pharmaceutical Industry
In the pharmaceutical industry, stringent quality control measures are essential to ensure the safety and efficacy of medications. Tri Clamp Sight Glass Stainless Steel plays a vital role in processes such as pharmaceutical production and sterile filtration. It allows operators to visually inspect the flow of pharmaceutical compounds, ensuring that they meet the required specifications. The sight glass also enables easy identification of any impurities or deviations, helping to maintain the purity and integrity of the products.
C. Chemical Industry
The chemical industry deals with a wide range of substances, many of which require careful monitoring and inspection. Tri Clamp Sight Glass Stainless Steel is used in chemical processes such as mixing, reaction monitoring, and filtration. It enables operators to visually assess the colour, clarity, and consistency of the chemicals, allowing for early detection of any abnormalities or deviations. This helps to ensure the safety and efficiency of the chemical processes.
5. Installation and Maintenance of Tri Clamp Sight Glass Stainless Steel
A. Proper Installation Guidelines
Proper installation of Tri Clamp Sight Glass Stainless Steel is crucial to ensure its functionality and longevity. It is important to follow the manufacturer's guidelines for installation, which may include steps such as cleaning the pipeline, applying a suitable gasket, and tightening the Tri Clamp connection. It is also essential to ensure that the sight glass is properly aligned and centred within the pipeline to provide an unobstructed view. Regularly inspecting the sight glass for any signs of damage or leakage is also recommended.
B. Regular Cleaning and Maintenance
To maintain the clarity and visibility of the sight glass, regular cleaning is necessary. It is important to follow proper cleaning procedures, which may involve using suitable cleaning agents and tools. It is also essential to remove any residual substances or deposits that may accumulate on the glass window. Additionally, inspecting the gasket for wear and tear and replacing it when necessary is important to maintain the integrity of the sight glass.
C. Troubleshooting Common Issues
In the event of any issues with the Tri Clamp Sight Glass Stainless Steel, troubleshooting steps can help identify and resolve the problem. Common issues may include leaking, clouded or scratched glass, or misalignment. Troubleshooting steps may involve inspecting the gasket for damage, cleaning the glass window, or realigning the sight glass within the pipeline.
The Tri Clamp Sight Glass Stainless Steel is a crucial component in various industrial processes, offering visibility, durability, and reliability. With its numerous advantages, such as easy inspection, hygiene, and adaptability, it has become an indispensable part of industries like food and beverage, pharmaceuticals, chemicals, brewing, and biotechnology. By following proper installation and maintenance practices and choosing the right specifications, businesses can ensure smooth operations and enhanced safety. So, invest in Tri Clamp Sight Glass Stainless Steel and witness the difference it can make in your industrial processes.
